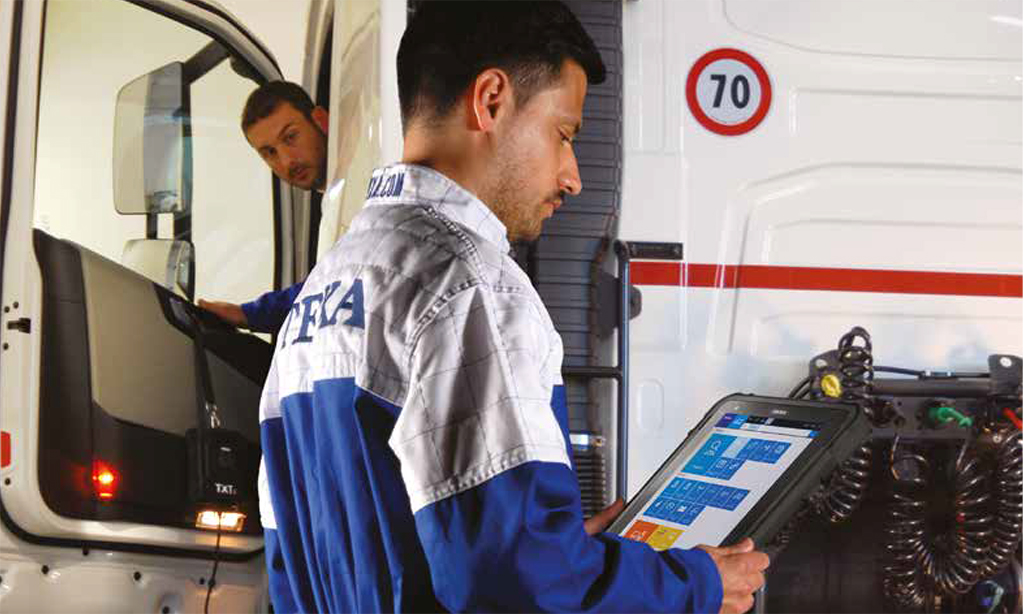

Today the diagnostics tool is an essential piece of equipment for every vehicle workshop.
Whatever the fault, it is likely that during each repair process the ECUs will need to be accessed to clear the fault codes or configure the replacement components, operations that are only possible using a diagnostic tool.

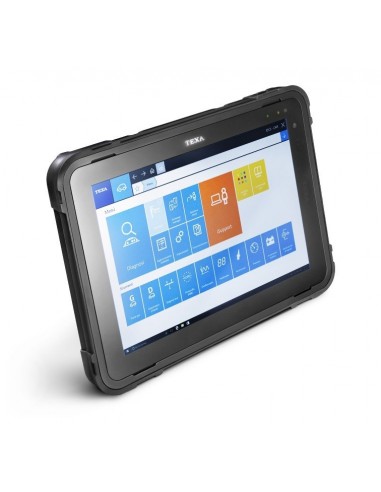

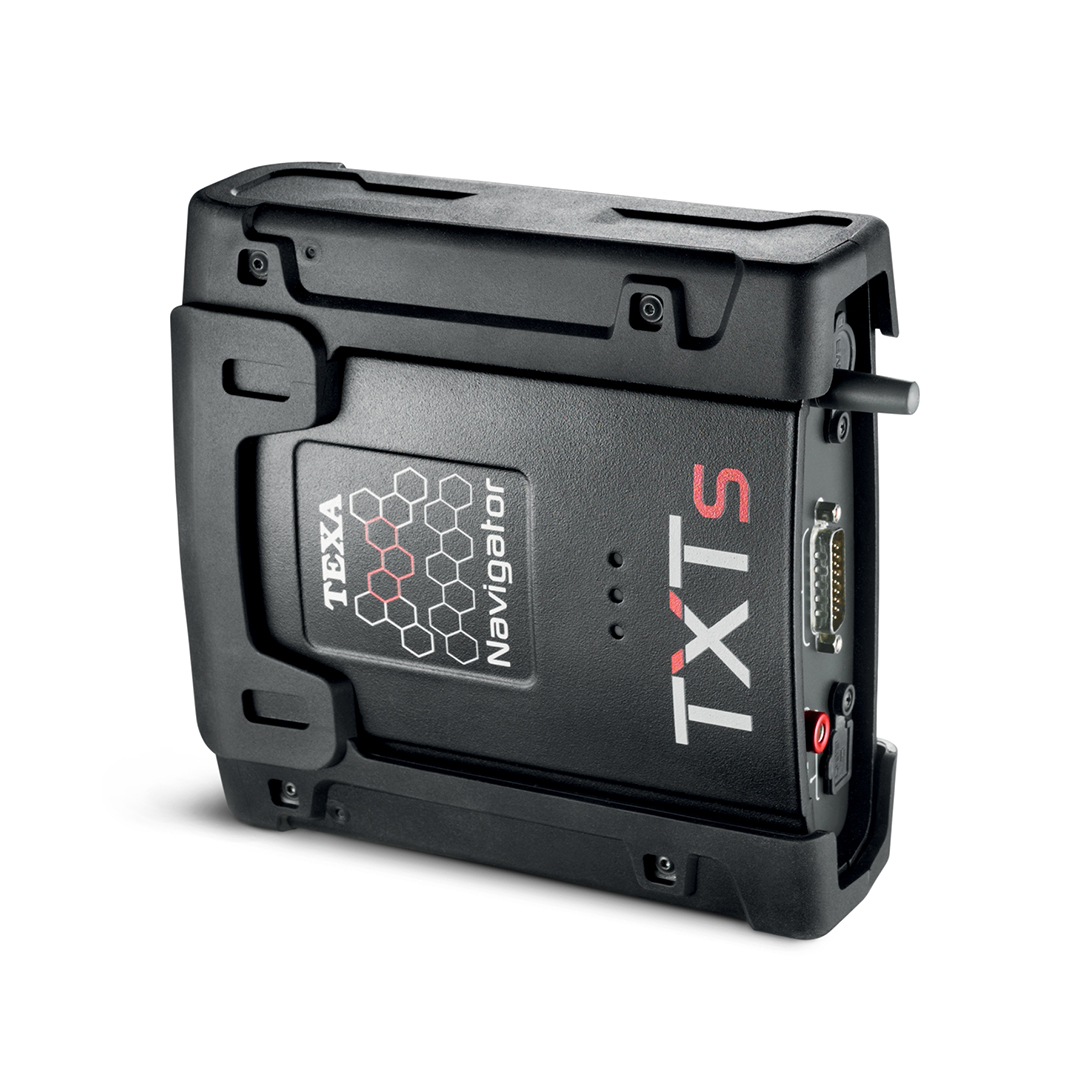

The NAVIGATOR TXTs is the latest multibrand diagnostic interface by TEXA; NAVIGATOR TXTs is a powerful multibrand diagnostics and autodiagnostics tool that connects directly to the vehicle’s diagnostic socket, and communicates via Bluetooth with the AXONE Nemo, AXONE 4 Mini and MULTI PEGASO display units, or alternatively with a Windows PC.
The NAVIGATOR TXTs is the most powerful, highest performer of TEXA’s vehicle interfaces and lets you work in the CAR, TRUCK, BIKE, OFF-HIGHWAY and MARINE environments. You can use it to run autodiagnostic tests, view parameters,status, activate devices, perform adjustments and configurations, reset warning lights, maintenance, service and airbag indicators, configure ECUs, program keys and remotes and much more. The NAVIGATOR TXTs is compatible with PASS-THRU protocol*, which allows workshops to connect to manufacturers’ central servers and download software packages or official technical information.
The NAVIGATOR TXTs is the most complete and versatile version in the range, and can be used on any type of vehicle.
Wireless connectivity means users can carry out diagnostics testing while being free to move around the vehicle and workshop.
NAVIGATOR TXTs can perform all common autodiagnostics tests, including: read and clear errors, display engineering parameters and activation status, set and configure oil change, service and airbag indicator light reset, ECU configuration, keys and remote controls.

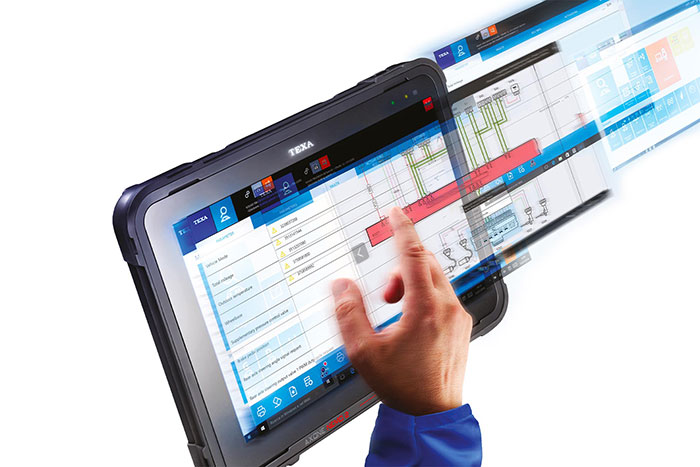

IDC5 is the latest generation of TEXA’s renowned operating system and another step forward to assist technicians. Thanks to major improvements in code the new system is faster than ever and guarantees virtually instant communication with a vehicle’s control units.

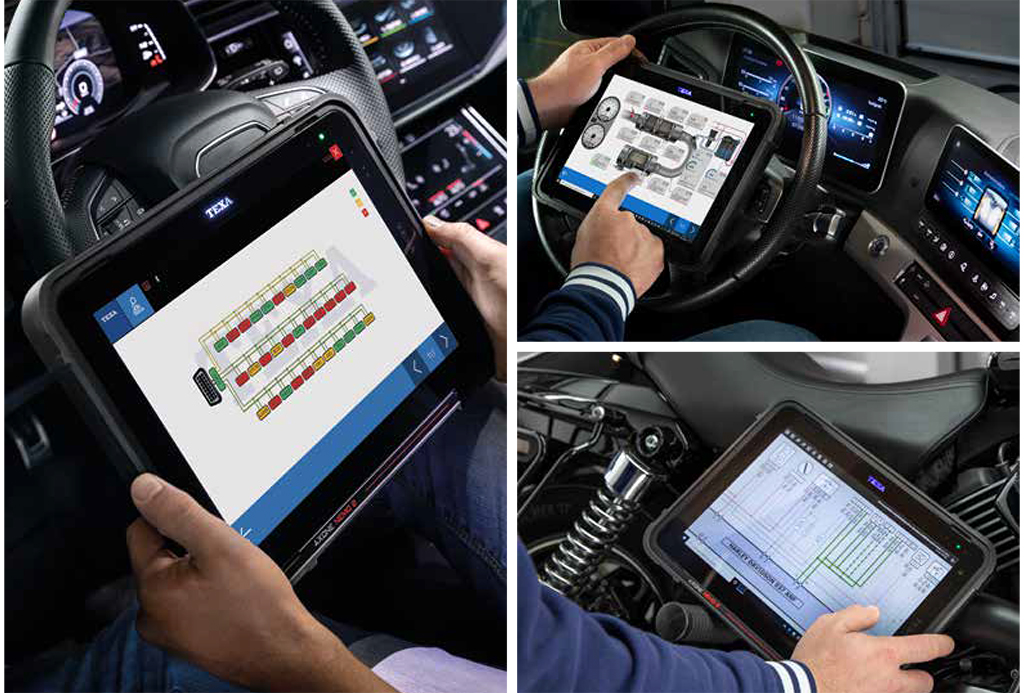

An even more intuitive software interfaceThe graphic interface of IDC5 is designed to resemble the latest consumer applications, simplifying and making the various steps in maintenance and repair procedures more intuitive. On top of this, all diagnostic pages have been redesigned to give a fuller view of the most relevant information.
Another new function allows you view and manage vehicle parameters. These can be displayed in graphic form and can be filtered using text searches or by selecting those specifically required.
Even the downloading of updates is faster in the new software. IDC5 is constantly evolving and is open to new technologies that appear in the near future.
The IDC5 software provides an extensive series of exclusive functionalities developed and optimised by TEXA’s own R&D department.
The Vehicle Search function identifies the model you are working on precisely and rapidly. Quick and intuitive, the Vehicle Search function can be used in the following ways:
VIN code search: with the diagnostic tool connected to the vehicle’s OBD socket, this function automatically retrieves the VIN and then selects the model of vehicle from the IDC5 software database.
Engine number search: in this case the vehicle is identified simply by entering the engine number.
Registration number search: this function lets you find and load data for any vehicle saved in IDC5’s Customer Management database, simply by entering the complete or partial registration number.
The amazing TGS3s automatically scans all the accessible* control units on the vehicle. The system is impressively fast in the way it recognises the ECUs and accesses the relevant diagnostics. On completion of the scan, TGS3s immediately displays any errors detected on the vehicle along with the relevant error codes and descriptions. It also lets you read and reset errors with a single click. You can even run autodiagnostics on selected systems directly from the error detection screen.
*TGS3s scanning may not function with older models of vehicle since previous generation control units may not support the latest scanning functionalities.
Freeze Frame lets you view the display of parameters and data detected and recorded at the moment a fault occurs. The actual information displayed by Freeze Frame may vary from one vehicle manufacturer to another and from one type of system to another.
“Error Help” is the easiest and most accessible way to obtain information on errors. The help content provides useful information on the meaning of error messages and if necessary, on what checks to perform first.
Faults sometimes intermittently occur under specific operating conditions. For example, power may be lost only when driving uphill or when the engine is under a high load, or perhaps a warning light comes on only when the engine is hot. Under conditions like these, the Rec&Play function offers the perfect solution, as it lets you record parameter values and any errors that occur during a road test. Data can be viewed and analyzed later and even printed out as a report on the test.
This function makes an instant link between the error read from the control unit and the corresponding component on the wiring diagram. From the wiring diagram you can access the test functions and device descriptions typical of the IDC5 operating environment.
This function displays a list of systems configured on a vehicle and lets you view a list of any errors detected. The function identifies all ECUs and reads their error logs (3 to 20 times faster than normal). It also determines the state of each error (active or logged) and provides instant access to the “Error Help” function and related fault solutions. In addition, the function lets you select and display a determined group of ECUs and even cancel errors without having to re-establish communication between the tool and the control unit
PROCESSOR
CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes
MEMORY
SRAM memory: 8 MBits organized 512 KBytes x 16 bits, Memoria NAND Flash 1 GBit on bus a 8 bit
VEHICLE BATTERY
12 VDC and 24 VDC systems' management
EXTERNAL POWER SUPPLY
8 ÷ 32 Volt
USB COMMUNICATION
virtual RS232 via USB 2.0 Device
WIRELESS CONNECTION
Bluetooth class1 (30 m)
ELECTRONIC SWITCH
2-way, 13 independent positions
DIAGNOSTIC CONNECTOR
DSUB-26HD standard ISO 22900-1
CONTROL UNIT REPROGRAMMING CONNECTOR
PV as required by the SAE J2534 protocol
ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Stocking temperature: - 20 ÷ 60 °C
Operating moisture: 10 ÷ 80 % senza condensa
DIMENSIONS
160x170x55 mm
WEIGHT
1 kg
SUPPORTED PROTOCOLS
Blink codes K, L (with current protection 100 mA), ISO9141-2, ISO14230; CAN ISO11898-2, ISO11898-3 SAE J1850 PWM SAE J1850 VPW SAE J2534-1
REGULATIONS
Directive: 1999/5/EC
Safety: EN 60950
Electromagnetic compatibility: EN55022, EN 55024, EN 301 489-1
Radio
Data sheets and Wiring Diagrams provide detailed information on the functionalities of individual systems to support autodiagnostic tests. In addition, users can also look up specific mechanical data for each vehicle.
TEXA’s technical bulletins provide superbly accurate information on the selected vehicle, including instructions for performing a manual reset after servicing, overviews of specific mechatronic systems and much more.
Wiring diagrams are prepared by TEXA’s own engineers. Because they follow the same standard for all vehicle manufacturers, they are a great help in troubleshooting. While you are consulting a wiring diagram, you can also access related datasheets by selecting a specific component or use the SIV function to perform oscilloscope tests using automatically selected settings.
I-SUPPORT (BY SUBSCRIPTION)This function can be used to send a request for assistance simply by entering the type of vehicle and the system being serviced then describing the specific problem that cannot be solved. The TEXA call centre will immediately deal with the request and provide a response to solve the problem in the shortest possible time.
| AGRALE | E-ONE | ISUZU (North America) |
| ASTRA | ERF | IVECO |
| AUTOCAR | FAW | IVECO (LATAM) |
| BEIFANG BENCHI | FODEN | IVECO DVD |
| CARMICHAEL | FORD | JAC |
| CATERPILLAR | FOTON | KAMAZ |
| CHEVROLET | FREIGHTLINER | KENWORTH |
| DAEWOO AVIA | GAZ | KRAZ |
| DAF | GMC | MACK |
| DAF (LATAM) | HINO | MAN |
| DENNIS EAGLE | HYUNDAI | MAZ |
| DODGE | INTERNATIONAL | MERCEDES-BENZ |
| DONGFENG | ISUZU | MITSUBISHI FUSO |
| NISSAN (EUROPEAN MARKET) | OSHKOSH | PETERBILT |
| RENAULT TRUCKS | SCANIA | SHAANXI |
| SHACMAN | SINOTRUCK | STERLING |
| TATA DAEWOO | TATRA | TERBERG |
| UD TRUCKS (NISSAN DIESEL) | VOLKSWAGEN TRUCKS | VOLVO TRUCKS |
| VOLVO TRUCKS (LATAM) | WESTERN STAR | MERCEDES-BENZ (LATAM / ASIA PACIFIC) |
Our company can offer you the optimal diagnostic tool for heavy duty vehicles, simply because excellent knowledge of the devices we sell, we know them to the last detail and only we will be able to train You how to work or to consult on the issues during the advise.
